Large - Diameter Brushed Stainless Steel Welded Pipe 316 Wall Thickness

Product Categories
WUXI XINFUTIAN METAL PRODUCTS CO., LTD
Contact Now

Large - Diameter Brushed Stainless Steel Welded Pipe 316 Wall Thickness

Brand Name : XINFUTIAN

Model Number : 316l，304

Certification : ISO, SGS, BV, CE, ISO / SGS

Place of Origin : WUXI,WENZHOU

MOQ : 1 ton

Price : Negotiation

Payment Terms : D/A, L/C, T/T

Supply Ability : 1000 ton/Month

Delivery Time : 5-7 working days

Packaging Details : Plastic bags

Type : Welded

Thickness : 0.4-30mm,0.5-100mm,0.25-2.5mm,1mm-40mm,0.8--2mm

Length : 6 Meters or according to customer's request

Technique : Cold Rolled Hot Rolled

Material : 200 Series/300 Series/400series

Shape : Round Section, slot, Round / Square / Rectangular / Oval etc

Contact Now

Large Diameter Welded Brushed Stainless Steel Pipe 316 Wall Thickness

The 300 series stainless steels are classified as austenitic and are hardenable only by cold working methods. These grades of stainless have approximately 18% to 30% chromium and 6% to 20% nickel as their major alloying additions. This series of stainless steel alloys are known to resist corrosion while maintaining their strength at high temperatures. While the 304 grade is the most widely used alloy of all stainless steels, the 300 series grades are inventoried in stainless steel plate, sheet, bar, pipe, tube and fittings and much more.
Size of Stainless steel pipe

Normal Pipe Size
Outside Diameter
Normal Wall Thickness
NPS
DN
OD
SCH10s
SCH40s
STD
SCH40
XS
SCH80s
1/8
6
10.3
-
1.24
1.73
1.73
1.73
2.41
2.41
1/4
8
13.7
-
1.65
2.24
2.24
2.24
3.02
3.02
3/8
10
17.1
-
1.65
2.31
2.31
2.31
3.2
3.2
1/2
15
21.3
1.65
2.11
2.77
2.77
2.77
3.73
3.73
3/4
20
26.7
1.65
2.11
2.87
2.87
2.87
3.91
3.91
1
25
33.4
1.65
2.77
3.38
3.38
3.38
4.55
4.55
1 1/4
32
42.2
1.65
2.77
3.53
3.53
3.53
4.85
4.85
1 1/2
40
48.3
1.65
2.77
3.68
3.68
3.68
5.08
5.08
2
50
60.3
1.65
2.77
3.91
3.91
3.91
5.54
5.54
2 1/2
65
73
2.11
3.05
5.16
5.16
5.16
7.01
7.01
3
80
88.9
2.11
3.05
5.49
5.49
5.49
7.62
7.62
3 1/2
90
101.6
2.11
3.05
5.74
5.74
5.74
8.08
8.08
4
100
114.3
2.11
3.05
6.02
6.02
6.02
8.56
8.56
5
125
141.3
2.77
3.4
6.55
6.55
6.55
9.53
9.53
6
150
168.3
2.77
3.4
7.11
7.11
7.11
10.97
10.97
316 stainless steel pipe is a kind of hollow long round steel, which is widely used in petroleum, chemical industry, medical treatment, food, light industry, mechanical instrument and other industrial transportation pipes and mechanical structural components. In addition, bending, torsional strength of the same weight, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also commonly used for the production of conventional weapons, barrels, shells, etc.

1. Grade:TP304 TP304L TP316L TP317L TP310S 904L 2205 2507

2. Size:19-720MM

3. Standard: ASTM A312 ASTM A213 ASTM A269

4. Certification: ISO9001, SGS

Product Name
Stainless Steel welded Pipes
Standard
ASTM A312 ASTM A213 ASTM A269
Material
Stainless Steel
Grade
TP304 TP304L TP316LTP316 Ti TP317L TP310S 904L 2205 2507
Size
19-720MM
Brande
"DONGFENG"
Technology
Hot rolling or Cold drawing
Used
Petroleurn/Chemical /Natgas/Building

Large - Diameter Brushed Stainless Steel Welded Pipe 316 Wall Thickness

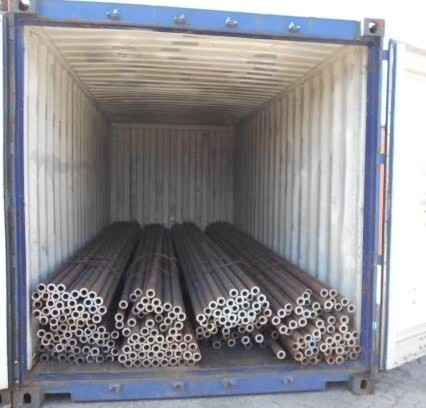

Package

Large - Diameter Brushed Stainless Steel Welded Pipe 316 Wall Thickness

Large - Diameter Brushed Stainless Steel Welded Pipe 316 Wall Thickness
